If you have been following guitar modeling over the past few years, you have likely seen how acoustic and amp profiling moved from a niche option to a standard industry tool. But while amp capture technology has matured quickly, instrument tone modeling has taken a slightly different path.

For years, Line 6’s Variax series was one of the primary choices for built-in guitar modeling. It allowed players to switch between a Stratocaster, a Gibson ES-175, a Martin acoustic, or an electric sitar within a single instrument. However, Variax required a dedicated guitar built with integrated piezo pickups and proprietary internal electronics.

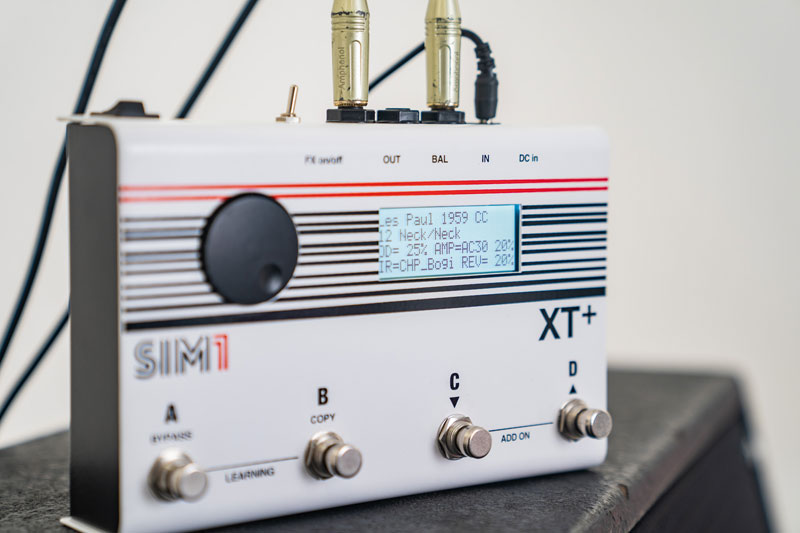

The ability to take your primary instrument—with the neck profile and feel you prefer—and match its frequency output to classic electric and acoustic guitars without altering hardware opens up interesting possibilities. Technology like the SIM1 XT+ pedal and app ecosystem demonstrates how this profile-based approach works, offering a preview of how Line 6 might develop guitar capture tech in future hardware platforms or Proxy updates.

How SIM1 XT+ Works: Smart Tone Shaping

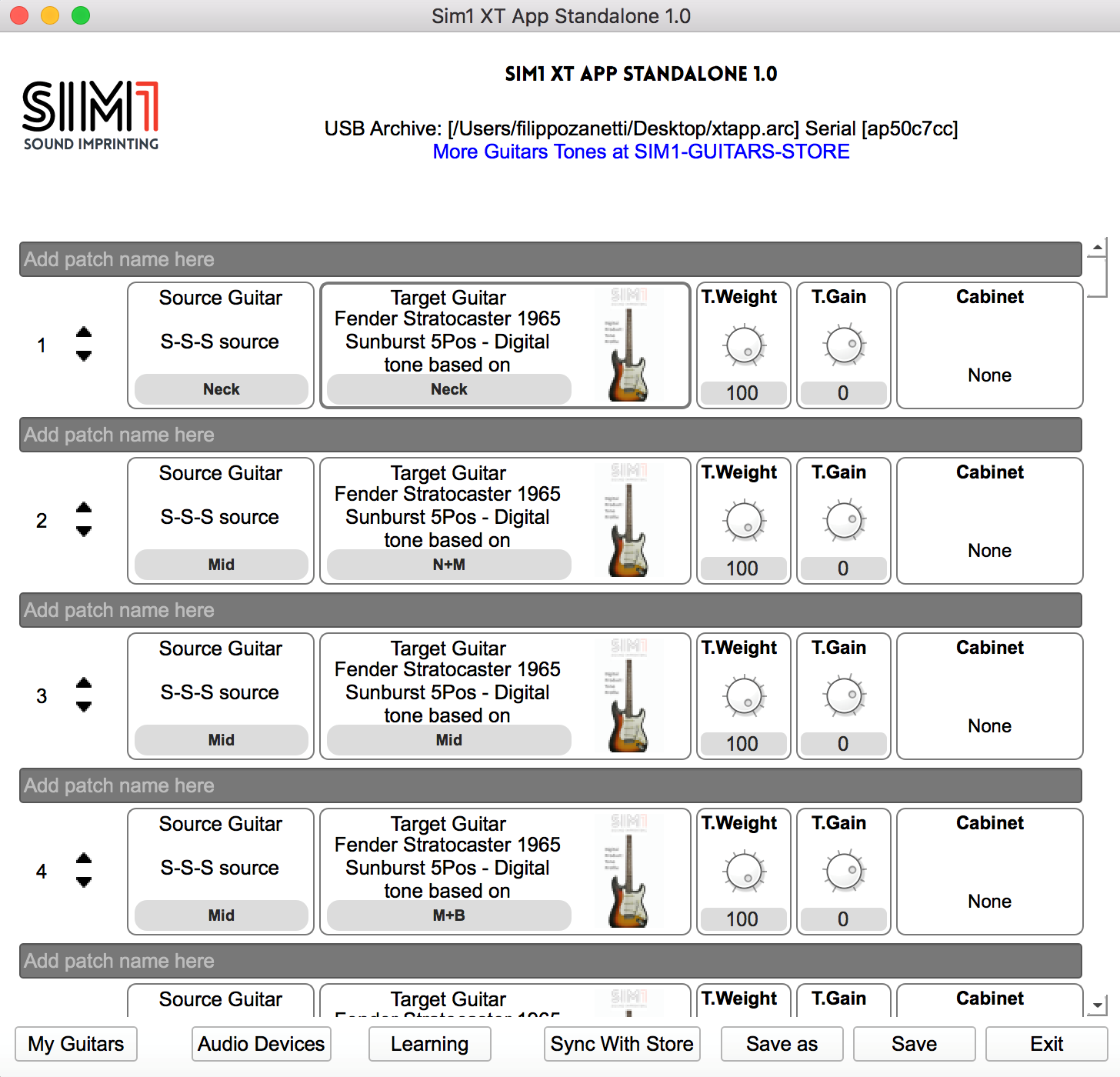

The SIM1 XT+ pedal and XT-App utilize a process referred to as Smart Tone Shaping (STS) or "Tone Imprinting." Rather than using hexaphonic piezo pickups, the system relies on a basic setup procedure:

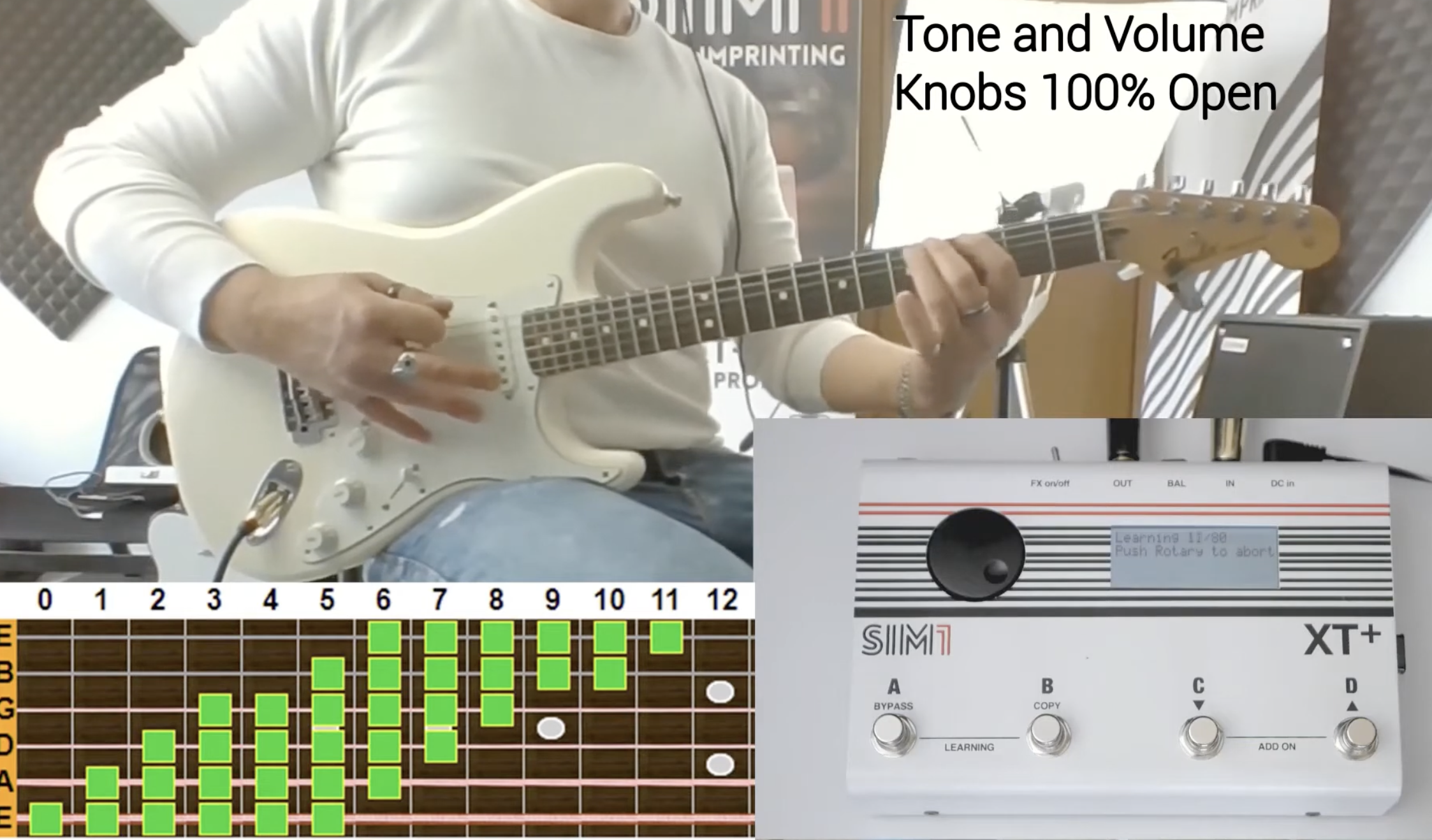

• Source Profile: You play a chromatic sequence on your standard guitar so the device analyzes the pickup response, output, and dynamic characteristics across different positions.

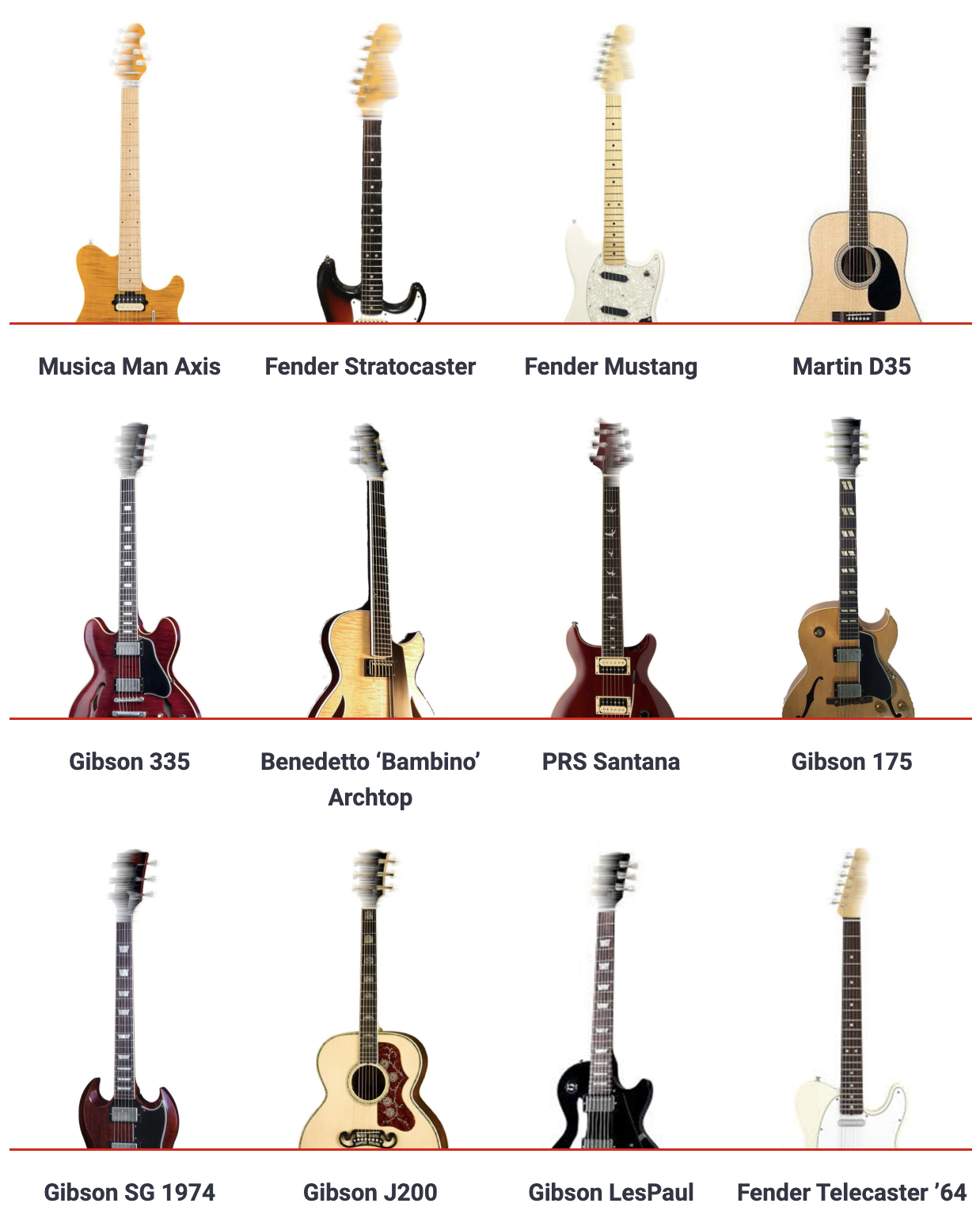

• Target Profile: The SIM1 processor compares your instrument's baseline signal against stored profiles captured from target vintage or modern guitars.
• Tone Imprinting: Digital signal processing, Body Resonance Modeling (BRM), and impulse responses adjust the frequency curve of your instrument to match the target profile.

Because the signal is processed directly from standard magnetic pickups, the system avoids hex pickups, tracking delay, or digital tracking artifacts.

SIM1 Tone Prints vs. Line 6 Variax Models

Both systems target similar tonal flexibility, but their hardware design and signal paths differ significantly:

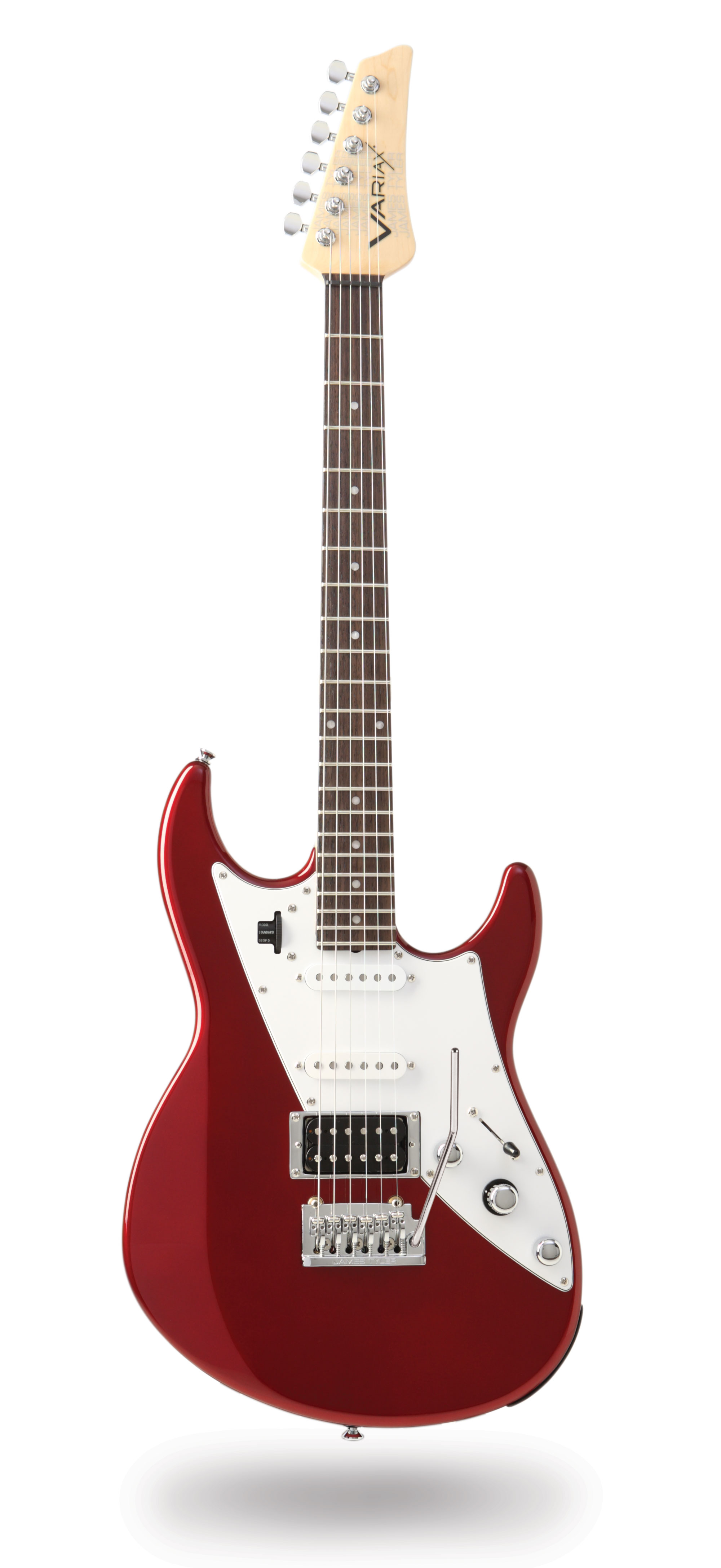

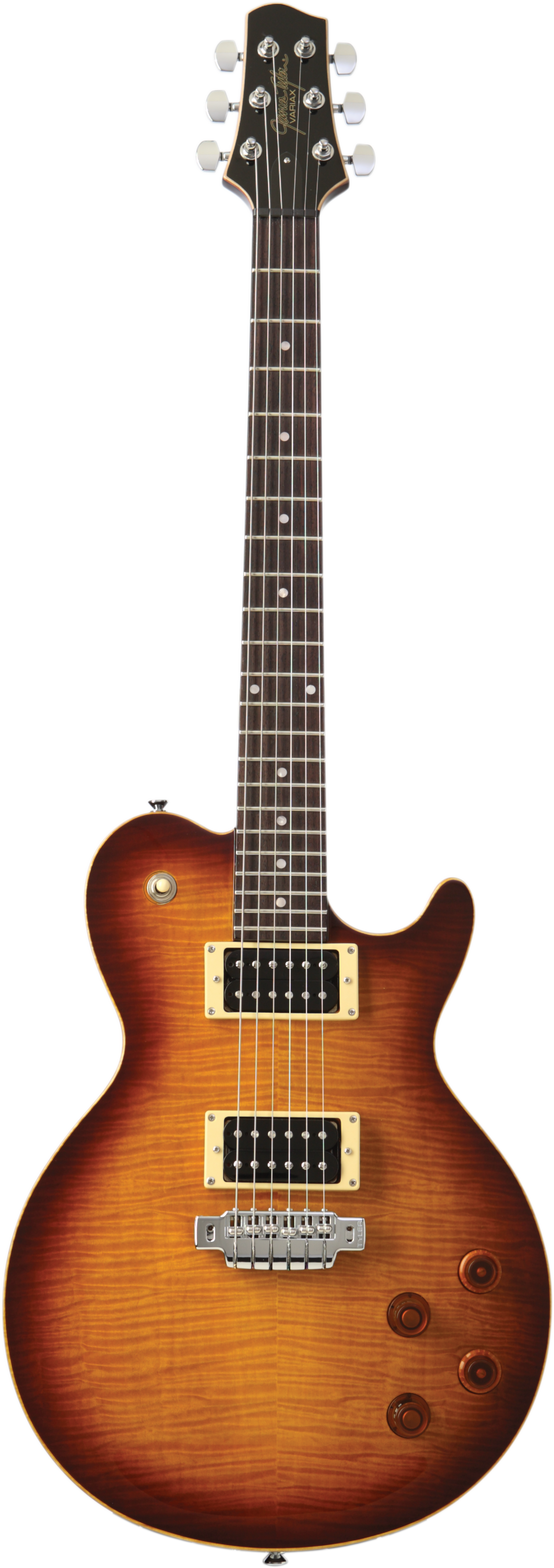

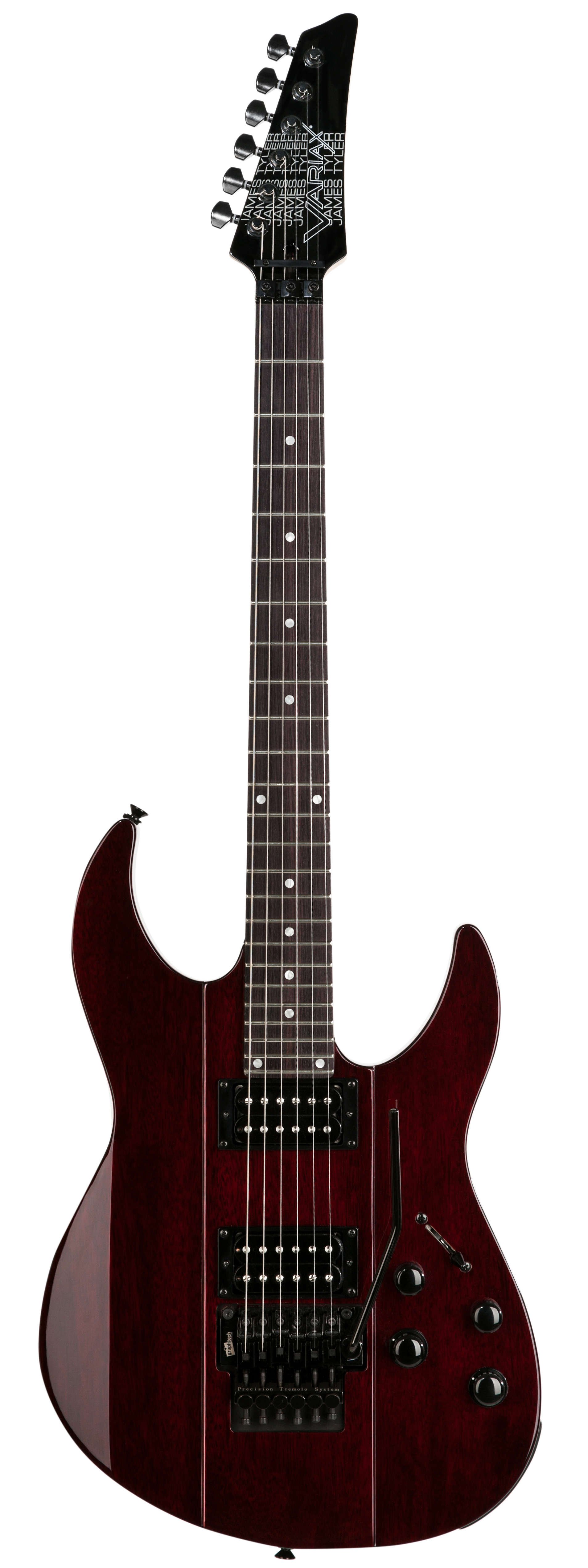

• The Variax Approach: Relies on individual piezo saddles for each string on a dedicated guitar. Internal processing models pickup placement, body resonance, and string-specific pitch changes in real time. While versatile, it requires buying a specific instrument, and piezo elements can occasionally introduce a sharp transient attack.
• The SIM1 Tone Print Approach: Works with sound profiles captured from target instruments. Instead of replacing your guitar, the pedal applies EQ curves and impulse responses to your existing magnetic pickups.

Practical Advantages of Software-Based Tone Capture

A software- or pedal-based capture approach offers several key advantages over proprietary modeling instruments:

• Instrument Choice: You can keep playing your preferred guitar without adapting to a different neck shape, fret size, or hardware configuration.
• Dynamic Response: Capturing from standard magnetic pickups maintains a familiar feel and attack, avoiding the high-end spikes sometimes associated with piezo saddles.
• Hardware Efficiency: Moving the modeling engine out of the instrument and into a multi-effects unit or floor processor reduces overall gear requirements and costs.

Could Line 6 Bring Instrument Capture to Next-Gen Helix?

Line 6 continues to refine its modeling engine with updates to Helix and Agoura amp architecture. Integrating guitar profile capture into a future Helix Proxy block or firmware revision could be a logical next step.

A short calibration routine within Helix could map your source guitar's pickup output, allowing patches to transform your instrument's profile into a vintage single-coil, a hollowbody, or a miked acoustic without requiring dedicated Variax hardware.

Combining profile-based instrument capture with Agoura amp models and IR cab simulation would allow players to manage their entire signal chain, from instrument voice to amp output, within a single floor unit.
